Il fan locomotivo trifase di auto del motore elettrico IC01 di CC di Z2-22 2.2KW si è raffreddato

  • Z2-22 2.2KW Three Phase DC Locomotive Electric Motor IC01 Self Fan Cooled
Luogo di origine La Cina
Marca Simo Motor
Certificazione 3C,CE,GOST,CNAS,UL,QMS,EMS
Numero di modello Motore di CC di serie Z2
Quantità di ordine minimo 1
Imballaggi particolari Pacchetto di legno solido
Tempi di consegna 50-60 giorni lavorativi
Termini di pagamento T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Dettagli
Tipo Motore di CC Z2-22 Pagina 1#~11#
Tensione nominale 110V, 220V, ecc Grado di protezione IP22
Potere 0.4kW~200kW tipo di raffreddamento IC01
Evidenziare

Motore elettrico locomotivo 2.2KW

,

Motore trifase di CC Z2-22

,

Motore elettrico locomotivo di CC IC01
Lasciate un messaggio
Descrizione di prodotto

Z2-22-2.2-220V-IP22-Class B-IM B3 DC Motor



Motor Parameters



Type: Z2-22-2.2-220V-IP22-Class B-IM B3 DC Motor
Rated Power 2.2 Efficiency 81
Rated Voltage 220 Moment of flywheel 0.055
Rated Current 12.35 Weight 55
Weak-excitation Max. Speed 3000



Technical Advantages

Z2-22-2.2-220V-IP22-Class B-IM B3 DC Motor has characteristics of 2.2 kW of rated power, 220 V of rated voltage, 12.35 A of rated current, 3000 r/min of weak-excitation Max. speed, 81% of efficiency. Its moment of flywood is 0.055 and weight is 55 kg.



This series of DC motor is generally industrial small size DC motor, which requires constant power speed range no larger than 2:1, and overload capacity no larger than 1.5 times of electric traction of rated torque. The basic structure of motor adopts drop-proof uniaxial extension, self-fan cooled structure, applying in general normal operation conditions.



Product Features

This series of motor has fine speed adjusting characteristic, reliable property and no need of direct AC power supply. It is with internal fan and self-ventilation.



Operation Conditions

Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).



Wide Application

This series of motor applies in industries of metal cutting machine, paper-cutting, dyeing and weaving, printing, cement, etc.



Profile Display

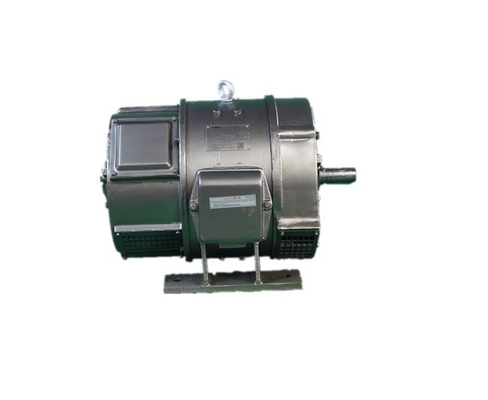

Il fan locomotivo trifase di auto del motore elettrico IC01 di CC di Z2-22 2.2KW si è raffreddato 0

Our Advantages

We are a developing and manufacturing enterprise specialized in large and medium, high and low voltage, AC and DC motors, synchronous motors, high efficiency motors and explosion-proof motors; a power system supplier intergrated motor design and manufacturing, mechanical processing, model manufacturing and automatic complete engineering. Our products mainly apply in electric power, coal, petroleum, mining exploring, metallurgy, railways, transportation, chemistry, agriculture, hydraulic power, navigation and high-tech areas, which is the motor supporting manufacturer specially designated by the Ministry of Railways.



Service Expanded

We proposed the service concept of "Customization" in accordance with the actual needs of customers in case of any special requirements. you can put forward special requirements and we will design an exclusive scheme as per your requirements. contact us of specific design and price.



Available Types of Z2



Item Type Rated Power Rated Voltage Rated Current Weak-magnet Max. Speed (r/min) Efficiency
(%)		 Moment of Flywood (kg·㎡) Weight
(kg)
Rated Speed 3000 r/min
1 Z2-11 0.8 110 9.83 3000 74 0.012 30
2 0.8 220 4.85 3000 75
3 Z2-12 1.1 110 12.9 3000 77.5 0.015 35
4 1.1 220 6.41 3000 78
5 Z2-21 1.5 110 17.5 3000 78 0.045 50
6 1.5 220 8.46 3000 79
7 Z2-22 2.2 110 24.7 3000 81 0.055 55
8 2.2 220 12.35 3000 81
9 Z2-31 3 110 33.2 3000 82 0.085 67
10 3 220 16.52 3000 82.5
11 Z2-32 4 110 43.8 3000 83 0.105 79
12 4 220 21.65 3000 84
13 Z2-41 5.5 110 60.6 3000 82.5 0.15 85
14 5.5 220 30.3 3000 82.5
15 Z2-42 7.5 110 81.6 3000 83 0.18 100
16 7.5 220 40.8 3000 83.5
17 Z2-51 10 220 53.8 3000 84.5 0.35 144
18 Z2-52 13 220 68.7 3000 86 0.4 156
19 Z2-61 17 220 88.9 3000 87 0.56 180
20 Z2-62 22 220 114.2 3000 87.5 0.65 200
21 Z2-71 30 220 158.5 3000 86 1 265
22 Z2-72 40 220 210 3000 86.5 1.2 300
Rated Speed 1500 r/min
1 Z2-11 0.4 110 5.35 3000 68 0.012 30
2 0.4 220 2.68 3000 68
3 Z2-12 0.6 110 7.68 3000 71 0.015 35
4 0.6 220 3.82 3000 71.5
5 Z2-21 0.8 110 9.84 3000 74 0.045 50
6 0.8 220 4.92 3000 74
7 Z2-22 1.1 110 13 3000 77 0.55 55
8 1.1 220 6.5 3000 77
9 Z2-31 1.5 110 17.6 3000 77.5 0.085 67
10 1.5 220 8.7 3000 78.5
11 Z2-32 2.2 110 25 3000 80 0.105 79
12 2.2 220 12.35 3000 81
13 Z2-41 3 110 34 3000 80 0.15 85
14 3 220 17 3000 80
15 Z2-42 4 110 44.6 3000 81.5 0.18 100
16 4 220 22.3 3000 81.5
17 Z2-51 5.5 110 60.5 2400 82.5 0.35 144
18 5.5 220 30.3 2400 82.5
19 z2-52 7.5 110 82.2 2400 83 0.4 156
20 7.5 220 40.8 2400 83.5
21 z2-61 10 110 107.6 2400 84.5 0.56 180
22 10 220 53.8 2400 84.5
23 z2-62 13 110 139 2400 85 0.65 200
24 13 220 69.5 2400 85
25 z2-71 17 110 180.6 2250 85.5 1 265
26 17 220 90 2250 86
27 z2-72 22 110 232.6 2250 86 1.2 300
28 22 220 115.4 2250 86.5
29 z2-81 30 110 315.5 2250 86.5 2.8 405
30 30 220 156.9 2250 87
31 z2-82 40 220 208 2250 87.5 3.2 430
32 z2-91 55 220 284 2000 88 5.9 650
33 z2-92 75 220 385 2000 88.5 7 685
34 z2-101 100 220 511 1800 89 10.3 950
35 z2-102 125 220 635 1800 89.5 12 1085
36 z2-111 160 220 808 1500 90 20.4 1265
37 z2-112 200 220 1010 1500 90 23 1510
Rated Speed 1000 r/min
1 Z2-21 0.4 110 5.51 2000 66 0.045 50
2 0.4 220 2.755 2000 66
3 Z2-22 0.6 110 7.68 2000 71 0.055 55
4 0.6 220 3.79 2000 72
5 Z2-31 0.8 110 10 2000 72.5 0.085 67
6 0.8 220 4.95 2000 73.5
7 Z2-32 1.1 110 13.33 2000 75 0.105 79
8 1.1 220 6.58 2000 76
9 Z2-41 1.5 110 17.8 2000 76.5 0.15 85
10 1.5 220 8.9 2000 76.5
11 Z2-42 2.2 110 25.32 2000 79 0.18 100
12 2.2 220 12.66 2000 79
13 Z2-51 3 110 34.3 2000 79.5 0.35 144
14 3 220 17.2 2000 79.5
15 z2-52 4 110 45.2 2000 80.5 0.4 156
16 4 220 22.3 2000 81.5
17 z2-61 5.5 110 60.6 2000 82.5 0.56 180
18 5.5 220 30.3 2000 82.5
19 z2-62 7.5 110 82.6 2000 82.5 0.65 200
20 7.5 220 41.3 2000 82.5
21 z2-71 10 110 110.2 2000 82.5 1 265
22 10 220 54.8 2000 83
23 z2-72 13 110 142.3 2000 83 1.2 300
24 13 220 70.7 2000 83.5
25 z2-81 17 110 185 2000 83.5 2.8 405
26 17 220 92 2000 84
27 z2-82 22 110 238 2000 84 3.2 430
28 22 220 118.2 2000 84.5
29 z2-91 30 110 319 2000 85.5 5.9 650
30 30 220 158.5 2000 86
31 z2-92 40 110 423 2000 86 7 685
32 40 220 210 2000 86.5
33 z2-101 55 220 285.5 1500 87.5 10.3 945
34 z2-102 75 220 385 1500 88.5 12 1085
35 z2-111 100 220 511 1500 89 20.4 1265
36 z2-112 125 220 635 1500 89.5 23 1510
Rated Speed 750 r/min
1 Z2-31 0.6 110 7.91 1500 69 0.085 67
2 0.6 220 3.9 1500 70
3 Z2-32 0.8 110 10 1500 72.5 0.105 79
4 0.8 220 4.95 1500 73.5
5 Z2-41 1.1 110 13.8 1500 72.5 0.15 85
6 1.1 220 6.9 1500 72.5
7 Z2-42 1.5 110 18.2 1500 74.5 0.18 100
8 1.5 220 9.16 1500 74.5
9 Z2-51 2.2 110 26.2 1500 76.5 0.35 144
10 2.2 220 13 1500 77
11 z2-52 3 110 35 1500 78 0.4 156
12 3 220 17.4 1500 78.5
13 z2-61 4 110 46.4 1500 78.5 0.56 180
14 4 220 23 1500 79
15 z2-62 5.5 110 62.2 1500 80.5 0.65 200
16 5.5 220 31.1 1500 80.5
17 z2-71 7.5 110 85.2 1500 80 1 265
18 7.5 220 42.1 1500 81
19 z2-72 10 110 112.1 1500 81 1.2 300
20 10 220 55.8 1500 81.5
21 z2-81 13 110 145 1500 81.5 2.8 405
22 13 220 72.1 1500 82
23 z2-82 17 110 187.2 1500 82.5 3.2 430
24 17 220 93.2 1500 83
25 z2-91 22 110 239.5 1500 83.5 5.9 650
26 22 220 119 1500 84
27 z2-92 30 110 323 1500 84.5 7 685
28 30 220 160.5 1500 85
29 z2-101 40 220 425 1500 85.5 10.3 945
30 z2-102 40 220 212 1500 86
31 z2-111 55 220 289 1500 86.5 12 1085
32 z2-112 75 220 387 1500 88 20.4 1265
Rated Speed 600 r/min
1 Z2-91 17 110 193 1200 80 5.9 650
2 17 220 95.5 1200 81
3 Z2-92 22 110 242.5 1200 82.5 7 685
4 22 220 119.7 1200 83.5
5 Z2-101 30 110 324.4 1200 84 10.3 945
6 30 220 161.5 1200 84.5
7 Z2-102 40 110 431 1200 84.5 12 1080
8 40 220 214 1200 85
9 Z2-111 55 220 289 1200 86.5 20.4 1265
